FIBERSTAR

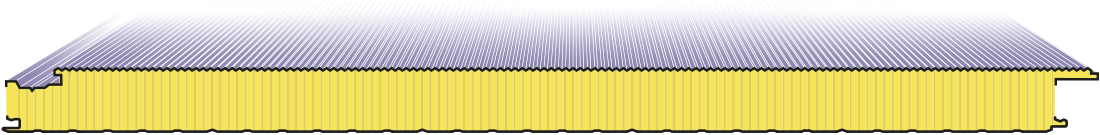

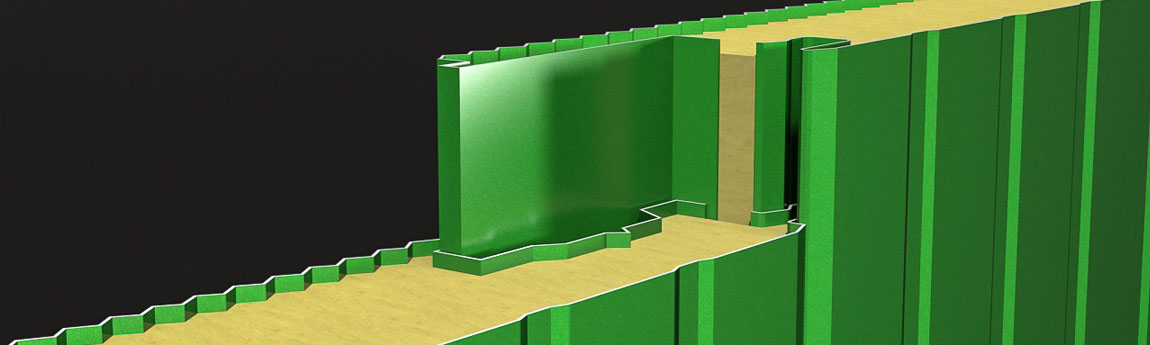

MINERAL WOOL WALL PANEL WITH HIDDEN JOINT

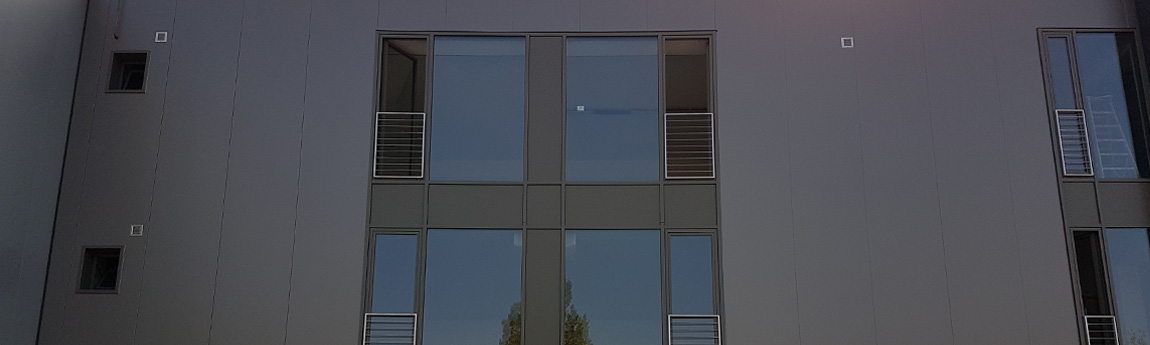

The perfect fusion between aesthetics and the highest performance in terms of insulation. All this is Fiberstar, the metal wall panel with hidden joint and mineral wool insulation, which combines high insulation with a pleasant and uniform surface of the building envelope, and with the possibility of choosing among the different finishes the one most in line with the design foreseen by the project.
– The specifications below are not to be considered product standards, but vary depending on the design needs and what is required during the contractual definition phase. –
DIMENSIONS
Width 1000 mm.
Length upon request from continuous production process.
THICKNESSES
80 – 100 – 120 – 150 – 200 mm
Panels of not standard thicknesses can be supplied upon request previous agreement on minimum quantities.
SUPPORTS
- Pre-painted or plasticized galvanized steel.
- Stainless steel.
- Aluzinc.
- Natural, pre-painted or embossed aluminium.
INSULATION
Made by a special configuration insulating layer, in high-density mineral fibres (λ = 0,040 W/mK), arranged perpendicular to the plate plane.
PROTECTIVE TREATMENT
- Pre-painting with polyester.
- Superpolyester (HD).
- PVDF.
- Polyurethane PUR/PA, with thicknesses ranging from 15 to 200 µm.
- Availability on request of other films and non-toxic coatings for occasional contact with food.
EPD CERTIFICATION (CAM)
The entire range of roofing and wall panels in steel and aluminium in PIR, PUR and mineral wool, single metal sheet panels and corrugated metal sheets in steel and aluminium, possess the EPD type III – EN ISO 14025 certification, meeting the requirements of compliance with the regulation construction DM 23 June 2022, and satisfying the required CAM criteria.
PRODUCT
Download the useful documents: dimensions, loading tables, transmittances and all the technical characteristics of the product.
Profile DimensionsCATALOGUES AND GROUP
Download the complete catalogues of the Group’s production companies and discover the entire product range.
TECHNICAL DOCUMENTATION
Download the conditions of sale and the documentation for the correct storage and use of the materials.
TECHNICAL AREA
Sign up and access the Technical Area to download Isolpack BIM models for Autodesk Revit, product DWG files, and exclusive design content.
– The certifications listed below are not to be considered product standards, but must be requested in advance based on the design needs and indicated during the contractual phase. –
| FIRE REACTION | THICKNESSES | |||||||
|---|---|---|---|---|---|---|---|---|
| CLASS | MATERIAL | CATEGORY | PRODUCT | 80 | 100 | 120 | 150 | 200 |
| A2-s1,d0 | MINERAL WOOL | WALL | FIBERSTAR | x | x | x | x | x |
The reaction to fire classification was obtained according to the EN 13501:2007+A1:2009.
Valid for all versions (except micro-perforated).
| FIRE RESISTANCE | THICKNESSES | |||||||
|---|---|---|---|---|---|---|---|---|
| CLASS | MATERIAL | CATEGORY | PRODUCT | 80 | 100 | 120 | 150 | 200 |
| EI90 | MINERAL WOOL | WALL | FIBERSTAR | x | x | x | x | |
| EI60 | MINERAL WOOL | WALL | FIBERSTAR | x | ||||
The fire resistance classification was obtained according to the EN 13501:2007+A1:2009.
Versions on request to be indicated before ordering.
